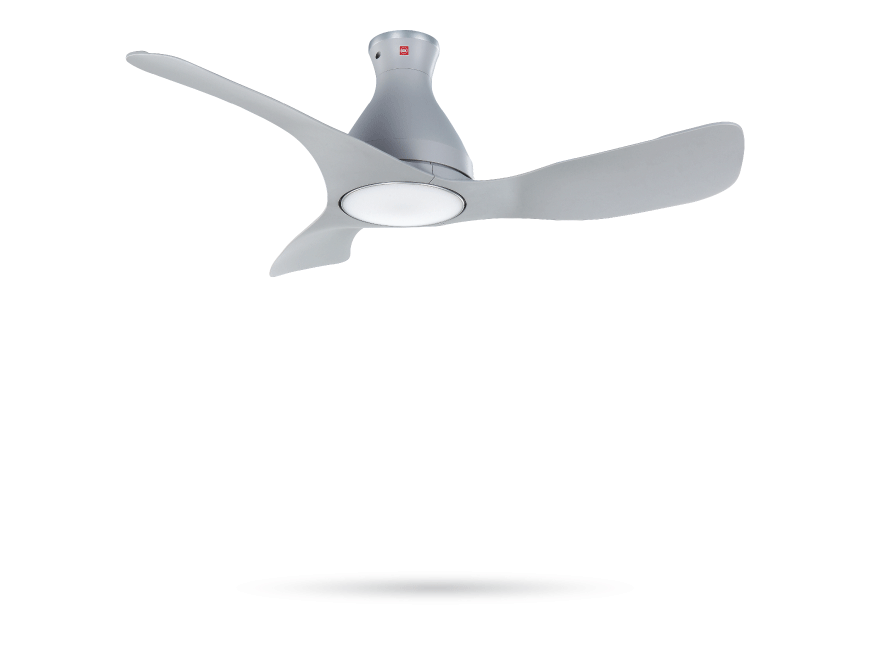

Nodoka JR

K12UC (120cm/ 48”)

RCP: RM1,042.00 (EM)      RCP: RM1,035.00 (WM)

product-tenaga-hook_Nodoka-K15YC
product-tenaga-hook_Nodoka-K15YC
Nodoka Series Application Instruction
(Model: K12YC, K12UC, K15YC, K15UC)
Nodoka Series Function Introduction
(model: K12YC, K12UC, K15YC and K15UC)

OVERVIEW

OVERVIEW

SPECIFICATION

MODEL
K12UC
COLOR

MATTE GREY

NO. OF BLADE

3

DIMENSION

48”/120CM

ENERGY STAR RATING
star
RPM Forward (LOW)

55

RPM Forward (HIGH)

170

RPM Reverse (LOW)

55

RPM Reverse (HIGH)

170

Air Delivery (m3/min)

200

Motor W (Fan Only)

Low 3 – High 31

Motor W (Fan & Light)

Low 22 – High 50

Motor Type

DC

NOISE LEVEL (dB)

41

NETT WEIGHT (kg)

5.2

Brightness Control – 23(lx) – 200(lx)

LED Colour – Mix (White + Warm)

Wattage – 1.9W – 19W

Brightness Control – 26(lx) – 150(lx)

LED Colour – White or Warm

Wattage – 2.1W – 15W

Brightness Control – 0.15(lx) – 1.1(lx)

LED Colour – Night Light (Warm)

Wattage – 0.2W – 0.4W

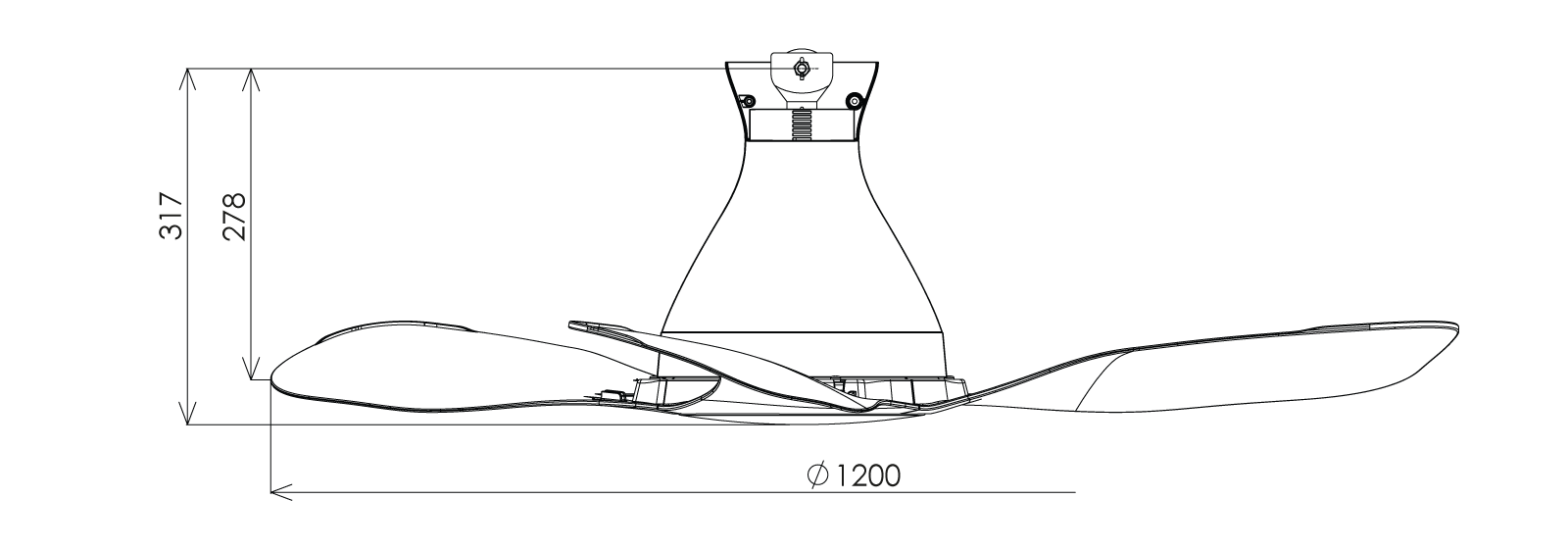

DIMENSION (MM)

Mobile Application Control

http://Mobile-Application-Title
  • Requires the App to work with smart devices with Android 6 and above, or iOS 12 and above
  • There is no guarantee that the App will work well if the Operating System is below Android 6 or iOS 12
  • 1 ceiling fan can be registered by 4 user accounts
  • 1 user account can register and control 8 ceiling fan simultaneously
