Regulator Type

K15W0-S (150cm/60″)

RCP: RM205.00 (EM)
RCP: RM199.00 (WM)

*Effective from 1st September 2018




Rating-K15W0

  • Energy saving condenser motor
  • Built-in safety wire
  • “ Easy-to-install ” electronic regulator
  • Thermal safety fuse prevents distortion from power surge enabling smooth operation
  • Meets C.O.P(Co-Efficient of Performance) requirements
  • Treated with double hybrid coating treatment for added protection and reliability. It is ideal for coastal areas, where the air is salty and corrosive in long term. (Test report is available upon request).
  • Enhanced with Cut-off Safety Device and blade Safety Plate

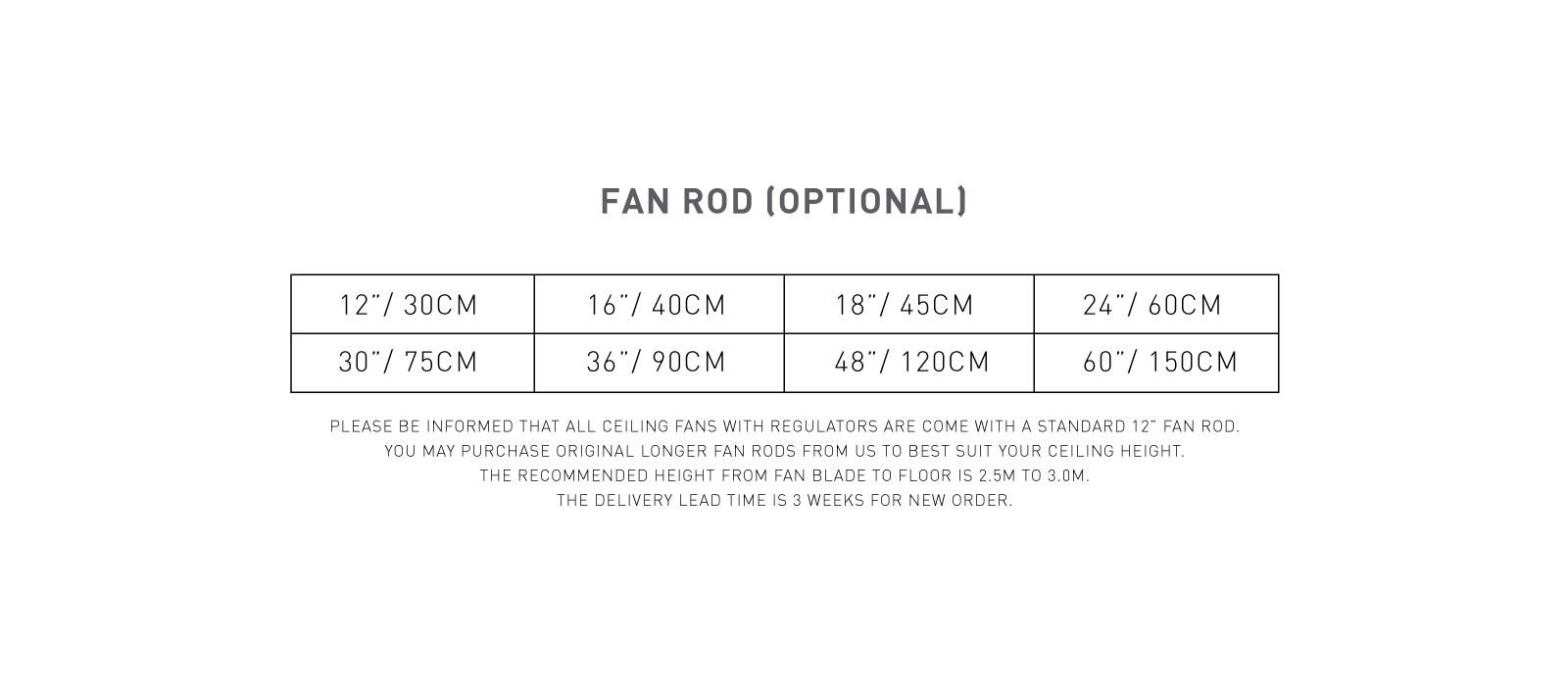

Fan Rod (Optional)

  • 12″/ 30cm
  • 16″/ 40cm
  • 18″/ 45cm
  • 24″/ 60cm
  • 30″/ 75cm
  • 36″/ 90cm
  • 48″/ 120cm
  • 60″/ 150cm

Please be informed that all ceiling fans with regulators are come with a standard 12” fan rod. You may purchase original longer fan rods from us to best suit your ceiling height. The recommended height from fan blade to floor is 2.5m to 3.0m (Link). The delivery lead time is 3 weeks for new order.

Model:K15W0-S
RPM:Low 81 – 118 High 216 – 264
Capacity (CFM):8122
Motor W:Low 14.7 – 19.9 High 67.5 – 82.5
Motor HP:0.10
Motor Type:14 Pole Condenser
Noise Level (dB):< 62
Net Weight (kg):5.5
