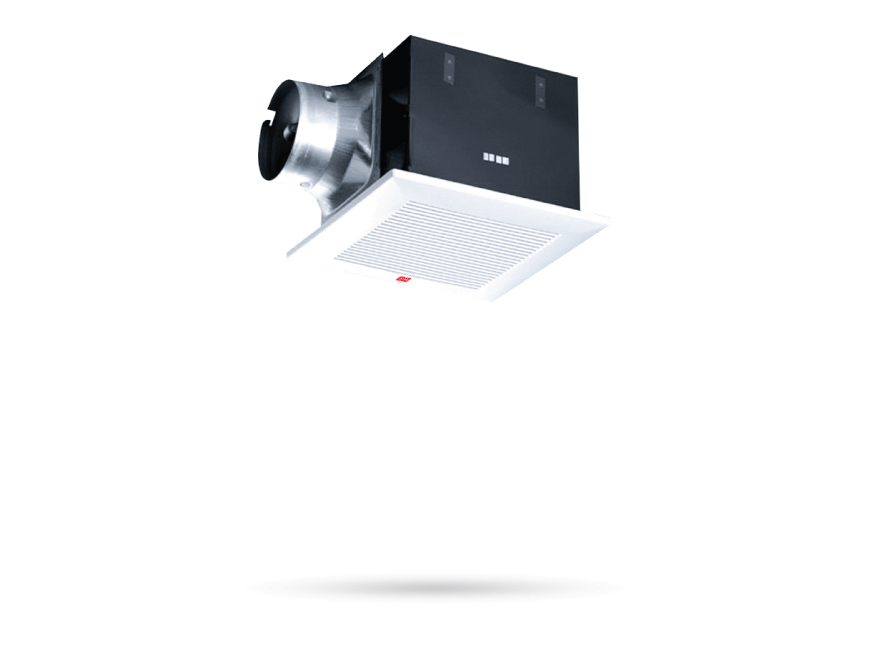

Steel Type with 2 speed motor

38CHG

RCP: RM1,630.00 (EM)
RCP: RM1,625.00 (WM)

*Effective from 1st June 2019




  • Super low noise with the distinctive design of “Resonance-Absorption Structure”
  • New taper blade design to achieve strong and smooth ventilating performance
  • Better durability with new ball bearing type motor
  • Reverse flow prevention shutter (shutter deflection if slight, resulting in further improvement of air tightness)
  • 2 speed motor for better durability
Model:38CHG
RPM:High 790 Low 540
Capacity (CFM):471
Motor W:122
Motor Rating:220-240V / 50 Hz
Motor Type:4 Pole Condenser
Noise Level (dB):50
Net Weight (kg):10.40

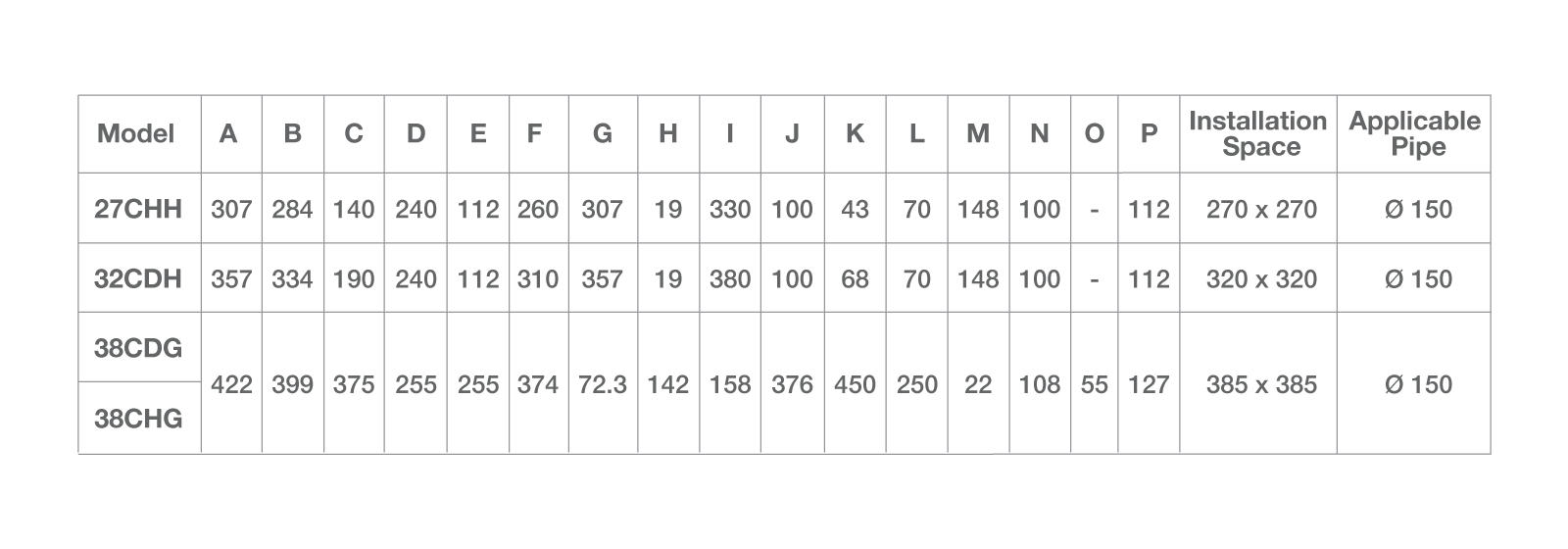

Model:27CHH:32CDH:38CDG:38CHG
A:307:357:422:422
B:284:334:399:399
C:140:190:375:375
D:240:240:255:255
E:112:112:255:255
F:260:310:374:374
G:307:357:72.3:72.3
H:19:19:142:142
I:330:380:158:158
J:100:100:376:376
K:43:68:450:450
L:70:70:250:250
M :148:148:22:22
N:100:100:108:108
O--:55:55
P:112:112:127:127
Installation space:270 x 270:320 x 320:385 x 385:385 x 385
Applicable pipe:Ø150:Ø150:Ø150:Ø150
